SPECIFICATIONS

Autonomy of work: Over 2 hours

Brand: Aceup Energy

Brand Name: Aceup Energy

Certification: EPA

Engine Power Maximum: 2300 Watts

Engine Type: GAS,4 Stroke

Frequency: 60HZ,60 Hz

Fuel Type: Gas

Hign-concerned Chemical: None

Ignition System Type: Recoil Start

Item Weight: 44 Pounds

Launch type: Manual

Model Number: AI2300

Number of phases: single phase

Origin: Mainland China

Output Type: AC Single Phase

Part Number: AI2300

Power (W): 1kW - 3kW

Power Source: Gas-Powered

Product Dimensions: 19.69"L x 11.81"W x 18.11"H

Rated Current: 15A

Rated Power: 1800W

Rated Voltage: 120V

Running Wattage: 1800 Watts

Runtime: 11 hours

Special Features: Portable, Super Quiet, Automatic Shut Down, Fuel Efficient, USB Port

Speed: 4800

Tank Volume: 1.05 Gallons

• Powerfully Generate: Energyed generator for home use by a 79.8 cc, 4-stroke OHV engine; 1800 running watts and 2300 peak watts with recoil start, frequency 60Hz; It runs up to 10 hours at quarter-load on 1.1 gallons.

• Portable and Quiet: 53 dB quiet operation, the small generator portable is only 44 lb weight, which is compact, lightweight and fully-enclosed design is ideal for camping outdoor, RV travel.

• Parallet Ready: to connect 2 inverter generators for twice the power(parallet kit sold separately); Includes two 3-prong 120V outlets, one 12V DC outlet and two 5V USB ports; NOTICE: To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer.

• Safe for Sensitive Electronics: Aceup Energy's inverter technology produces the clean power required by a variety of sensitive electronics, such as phones, laptops and other outdoor electronics.

• Safety Certificate: All Aceup Energy portable generators are functionally tested in the factory to guarantee quality; EPA compliant; Backed by a 1 year limited warranty with free lifetime technical guidance from experts.

GENERATORS SELECTION GUIDE

HOW MUCH POWER DO YOU NEED?

• Choose which devices you want to power at the same time.

• Record and add the running Watts listed for each device that you need to power.

• Record the stating watts listed for each device.

• Select the one device with the highest stating watts. Add that number to the total running watts to determine the total wattage requirement.

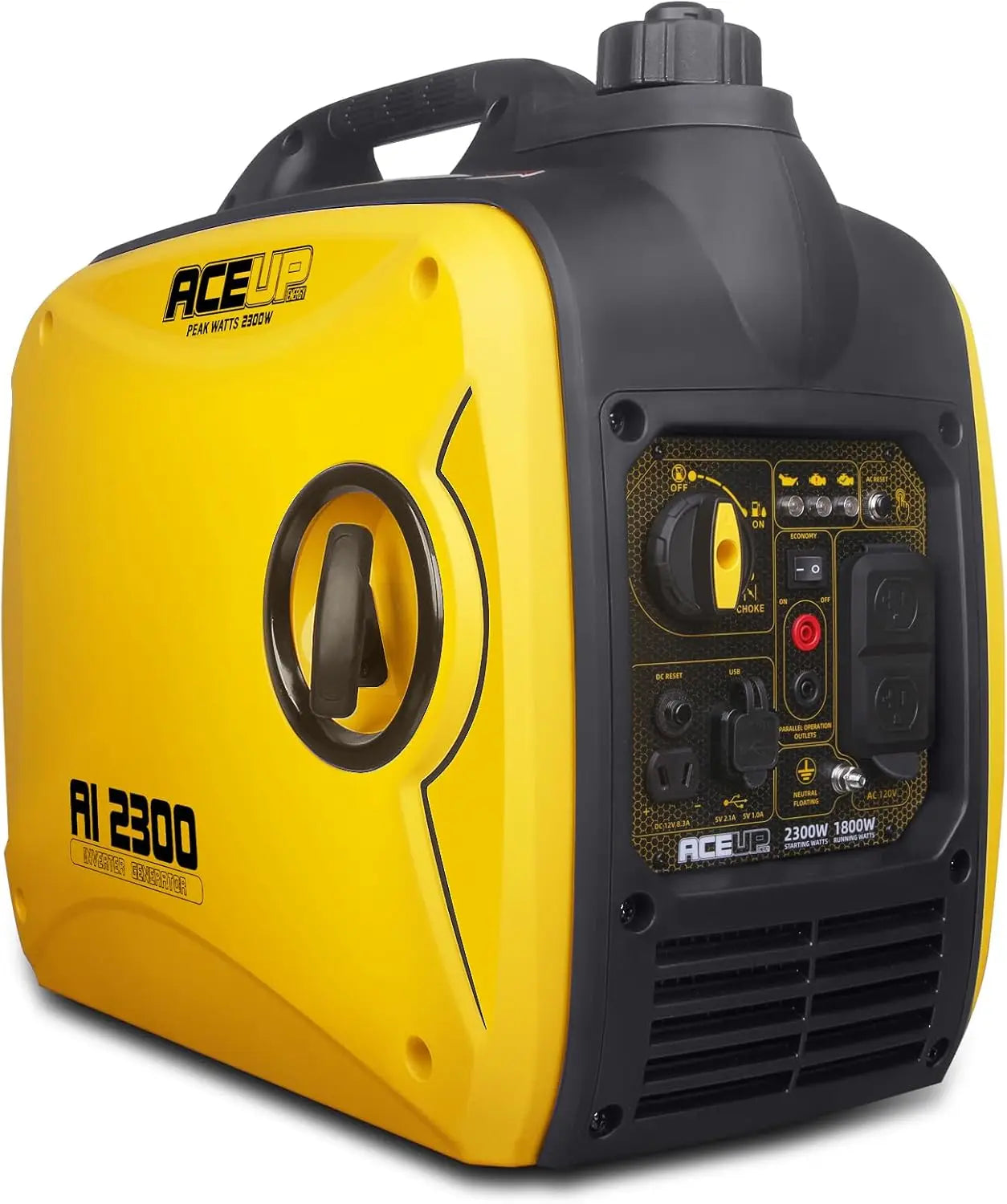

2300 Watt Portable Lightweight Inverter Generator

• Starting Wattage: 2300W

• Running Wattage: 1800W

• Displacement:79.8cc

• Engine Type: 4-stroke, Air-cooled, OHV

• Fuel Capacity/Type: 1.1Gal (4.2L)/Unleaded

• Engine Oil capacity: 0.35L

• Run Time: Up To 10 Hours at Quarter-Load

• Frequency: 60Hz

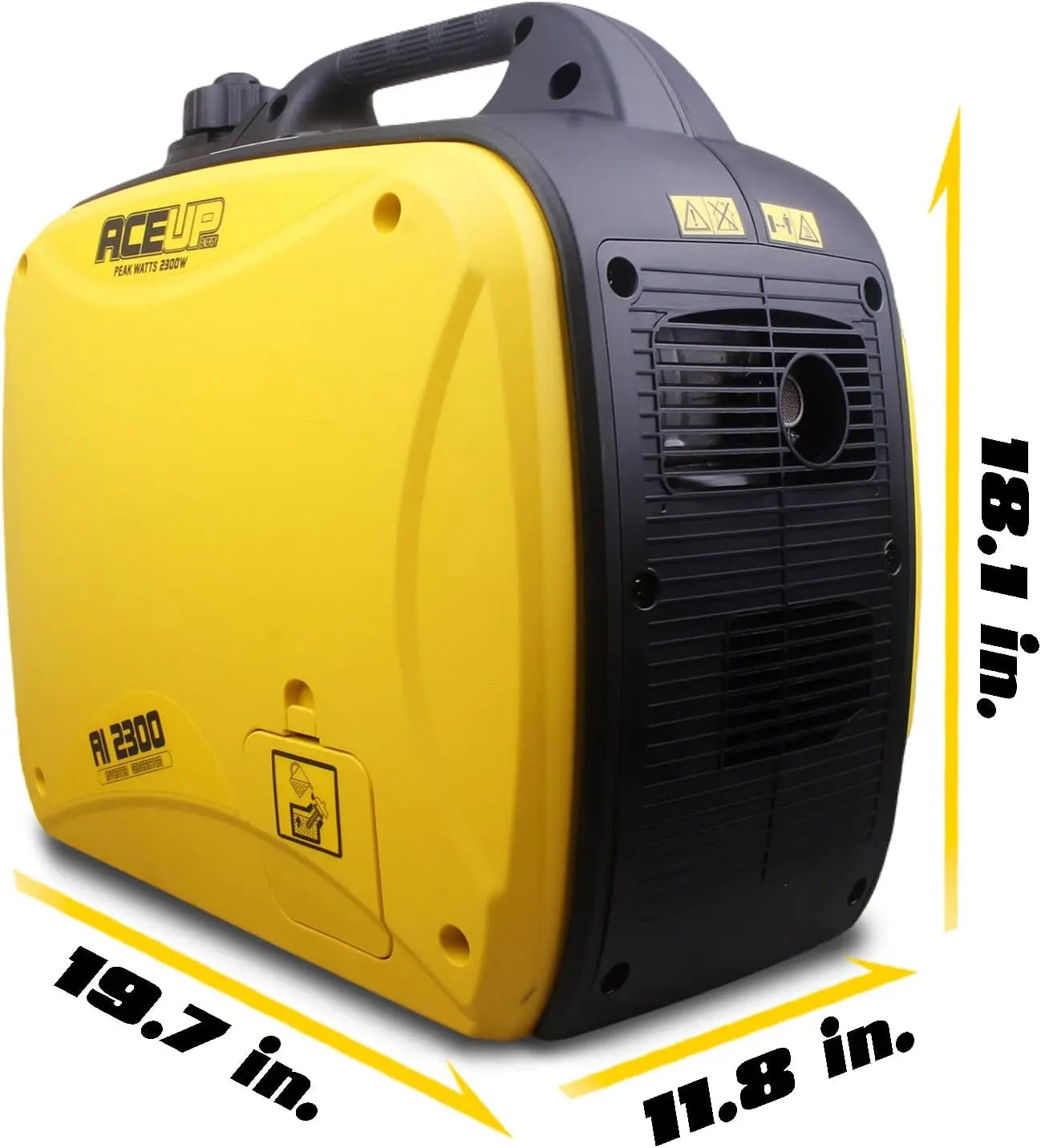

• Product Dimensions: 19.68" x 11.8" x 18.1"

• Net weight: 43.9 lb

• NOTICE: The break-in period will last about 25 hours of use. DO NOT exceed 75% of the generator’s rated capacity during this period.

• NOTICE: To avoid engine problems,the fuel system should be emptied before storage of 30 days or longer.
